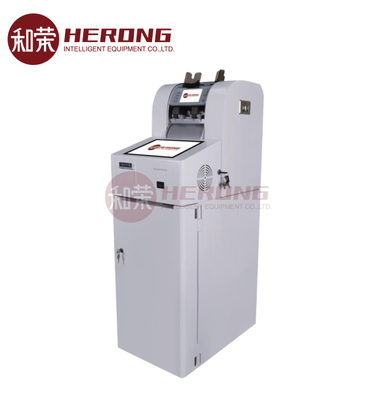

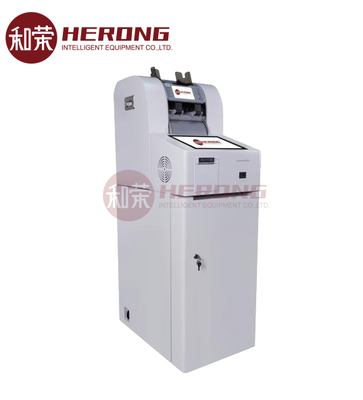

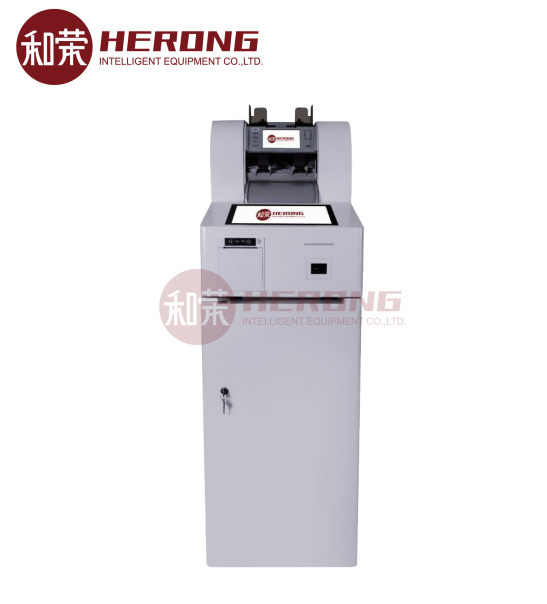

CDM-D04L Banking Self-Service Terminal High Capacity Cash Deposit Machine

CDM-D04L Banking Self-Service Terminal High Capacity Cash Deposit Machine

  • CDM-D04L Banking Self-Service Terminal High Capacity Cash Deposit Machine
  • CDM-D04L Banking Self-Service Terminal High Capacity Cash Deposit Machine
  • CDM-D04L Banking Self-Service Terminal High Capacity Cash Deposit Machine
CDM-D04L Banking Self-Service Terminal High Capacity Cash Deposit Machine
تفاصيل المنتج:
مكان المنشأ: قوانغدونغ، الصين
اسم العلامة التجارية: HE
إصدار الشهادات: CE/CCC/FCC/ROHS/ISO9001
رقم الموديل: آلية التنمية النظيفة-D04L
شروط الدفع والشحن:
الحد الأدنى لكمية: 1 جهاز كمبيوتر
الأسعار: قابل للتفاوض
تفاصيل التغليف: مع التغليف القياسي أو وفقًا لطلب العميل
وقت التسليم: 15-20 يوما
شروط الدفع: خطاب الاعتماد، د/ف، تي/تي، ويسترن يونيون
القدرة على العرض: 1000 قطعة في الشهر
اتصل
مفصلة وصف المنتج
آمن: يو إل 291 / سي إن 1 نظام التشغيل: مايكروسوفت ويندوز 10/ويندوز 11
كبش: ذاكرة 8/16/32 جيجابايت القدرة النقدية: ≥15000 ورقة نقدية
عرض: شاشة TFT تعمل باللمس مقاس 12.1 بوصة (قابلة للقراءة في ضوء الشمس) التخصيص: تصميم وحدات، وحدات اختيارية

CDM-D04L Banking Self-Service Terminal High Capacity Cash Deposit Machine

Advantages:

Reliability
D04L provides users with maximum online uptime, minimal maintenance requirements, and the lowest repair costs.

Security
D04L provides superior security for users. lt features a UL/CEN-compliant safe, along with a facial recognition camera.

Flexibility
D04L features a modular design. lt supports a variety of optional modules, allowing users to customize according to their individual needs.

User-friendly
D04L features a highly humanized design, including chamfered corners, arear status indicator light and so on. And it supports the majority of SWITCH's online transactions.

Specifications:

Dimensions Width 395mm
Height 1340mm
Thickness 615mm
Net Weight 230kg
Backing plate and carton packaging weight 260kg
Backing plate and wood packaging weight 275kg



Summary:

Software
Compliant with CEN/XFS standard, support different protocols like: NDC, DDC, ISO8583, etc.
Security Safe UL 291/CEN 1
Lock Key Lock, Mechanical Combination Lock, Digital Lock
Camera Binocular Camera (opt.), Facial Camera
Sensor Body Sensor, Door Sensor, Infrared Sensor (opt.),Smoke Sensor (opt.), Light Sensor (opt.)
Others Explosion-proof Glass, DVR (opt.)
Controlling Unit OS Microsoft Windows 10 / Windows 11
CPU Support Intel Core i5/i7
RAM Support 8/16/32 GB Memory
HDD Max.1 TB Hard Disk
Communication RJ45, WIFI, X.25, etc.
Power AC 220V~240V,50~60 Hz,Surge protection,UPS(opt)
Cash Processing Unit Cash Bag 1 Unit
Capacity Capacity ≥15,000 banknotes, up to 200 banknotes per transaction, Speed ≥ 700PPM, Support continuous deposit
OCR Support Banknote Serial Number Recognition
Customer Interface Display 12.1” TFT Color LCD Touch Screen, Privacy Filter (opt.), Sunlight Readable
Cash Deposit Module EThe module features a friction-type horizontal banknote deposit system that supports various banknote types. It utilizes advanced identification technologies, including ultraviolet imaging, white light imaging, infrared imaging, and multi-spectral imaging. The system analyzes ultraviolet and infrared optical properties, as well as fluorescent characteristics. Additionally, it employs security line magnetic feature analysis and thickness measurement techniques, along with magnetic imaging and variegated ink detection methods
Receipt Printer Graphic Thermal Receipt Printer,E-journal
Light Device Guidance Light, Status Indicator Light, LED Electronic Screen Light (opt.), Logo Light (opt.)
Others Bar Code Reader, Fingerprint Reader (opt.)
Environment Work Environment Temperature:-10~+65(+14~+149)(Indoor),-35~+75℃,(-31~+167)(Outdoor with heater)
Humidity: 20%~85%(No condensation)
Storage Environment Temperature: -20~+85(-4~+185)
Humidity: 5%~90%(No condensation)
Additional Module
SIU Control Board, Fan, Heater (opt.)

CDM-D04L Banking Self-Service Terminal High Capacity Cash Deposit Machine 0

CDM-D04L Banking Self-Service Terminal High Capacity Cash Deposit Machine 1

CDM-D04L Banking Self-Service Terminal High Capacity Cash Deposit Machine 2





Company Introduction:


CDM-D04L Banking Self-Service Terminal High Capacity Cash Deposit Machine 3


Herong Intelligent Equipment Co., Ltd. is a professional manufacturer integrating R&D, production, assembly, sales and service. Herong was established in 2016 and is located in Dongguan City, Guangdong Province, China.


We are proficient in various types of plastic molds and CNC hardware processing. We also specialize in vending machines, ATM/VTM machines, self-service kiosks, all other functional kiosks and their parts. Our factory has advanced mold and injection molding equipment, and has set up its own CNC machining center, which can perfectly undertake ATM accessories, auto accessories, household appliances, daily necessities, electronic products, medical equipment and other projects. We have professional equipment such as CNC punching machine, bending machine, laser cutting machine, spraying line, dust free workshop and all other related equipment. We can provide ODM/OEM service for customers. All the products we offer are certified by ISO9001, SGS, RoHs, CE, FCC, etc. For logistics, we can choose DHL, UPS, FedEx, sea or air, etc., it is up to our customers.


By continuously improving product quality and providing excellent service, we have maintained a good cooperative relationship with customers in more than 130 countries around the world.

Shipment:

CDM-D04L Banking Self-Service Terminal High Capacity Cash Deposit Machine 4

RFQ:
  • Q:what’s the condition of your product?
    A:Generally we can provide 4 conditions:new original,new generic,original used and original ref.
  • Q:Is your products have a warranty?
    A:Yes.Every product has a warranty,normally it is 3 months.
  • Q:Do you have your own factory?
    A: Of course yes.We have our own factory,we can build the molds and produce parts by ourselves.
  • Q:What’s the lead time of your product?
    A:Normally it is 3-7 days after payment.The lead time is related to the quantity you ordered.
