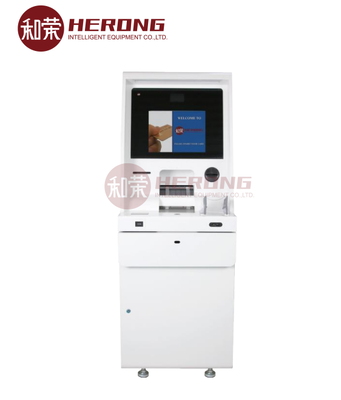

CDM-T68L Bulk Deposit Machine High Quality Financial Self-Service Terminal Bank Cash Deposit Solution

CDM-T68L Bulk Deposit Machine High Quality Financial Self-Service Terminal Bank Cash Deposit Solution

تفاصيل المنتج:
مكان المنشأ: قوانغدونغ، الصين
اسم العلامة التجارية: HE
إصدار الشهادات: CE/CCC/FCC/ROHS/ISO9001
رقم الموديل: CDM-T68L
شروط الدفع والشحن:
الحد الأدنى لكمية: 1 جهاز كمبيوتر
الأسعار: قابل للتفاوض
تفاصيل التغليف: مع التغليف القياسي أو وفقًا لطلب العميل
وقت التسليم: 15-20 يوما
شروط الدفع: خطاب الاعتماد، د/ف، تي/تي، ويسترن يونيون
القدرة على العرض: 1000 قطعة في الشهر
اتصل
مفصلة وصف المنتج
آمن: يو إل 291 / سي إن 1 حياة المنتج: 10 سنوات
MTBF: ≥4500 ساعة MTTR: ≤30 دقيقة
كاسيت: 4 أشرطة لإعادة التدوير، 1 علبة رفض/سحب درجة حرارة العمل: -35 درجة مئوية ~ +75 درجة مئوية (-31 درجة فهرنهايت ~ +167 درجة فهرنهايت)

CDM-T68L Bulk Deposit Machine High Quality Financial Self-Service Terminal Bank Cash Deposit Solution

Advantages:

Reliability
Product Life: 10 years (in a standard environment with normal maintenance and repair)
MTBF: ≥4500 Hours, Cash Deposit: Average Number of Deposits Without Failure (MCBF) ≥5000 times
MTTR: ≤30 Minutes

Banknotes Return & OCR
Banknotes return function, which can support deposited banknotes enter into the temporary storage unit, then enter into the cassette afer customer's confirmation.
Support banknotes serial number tracking.

Sorting & Counterfeiting
Banknotes sorting and counterfeiting function.
Two-port sorting function, which can be used as a two-port sorting machine.

Specifications:

Dimensions Width 730mm
Height 1840mm
Thickness 1185mm
Net Weight 480kg
Backing plate and carton packaging weight 490kg
Backing plate and wood packaging weight 500kg




Summary:


Software
Compliant with CEN/XFS standard, support different protocols like: NDC, DDC, ISO8583, etc.
Security Safe UL 291/CEN 1
Lock Key Lock, Mechanical Combination Lock, Digital Lock
Camera Binocular Camera (opt.), Facial Camera, Cash Slot Camera
Sensor Body Sensor, Door Sensor, Infrared Sensor (opt.),Smoke Sensor (opt.), Light Sensor (opt.)
Others Explosion-proof Glass, PIN Pad Shield, DVR (opt.),Privacy Mirror
Controlling Unit OS Microsoft Windows 10 / Windows 11
CPU Support Intel Core i5/i7
RAM Support 8/16/32 GB Memory
HDD Support Max.1 TB Hard Disk
Communication RJ45, WIFI, X.25, etc.
Power AC 220V~240V,50~60 Hz,Surge protection,UPS(opt)
Cash Deposit Unit
Cassette 4 Recycling Cassettes, 1 Reject/Retract Cassette
Capacity 4 recycling cassettes support to extend to Max. 8 recyclable sub units, the recycling cassette supports Max. 3400 banknotes, the reject unit and the retract unit support Max. 3400 banknotes. Up to 300 banknotes per transaction, 13 banknotes / second
OCR Support Banknote Serial Number Recognition Mixed deposit functon of multi-denomination banknotes Large-amount deposit function with uninterrupted banknote deposit
Customer Interface Display 15” TFT Color LCD Touch Screen, Privacy Filter (opt.), Sunlight Readable
EPP
 PCI compliant, 4x4 metal EPP, 2x4 function keys, dust/water/vandal resistant, support customizable layout and braille key
Card Reader EMV Motorized Card Reader, DIP Card Reader(opt.), Contactless Card Reader (opt.) Card Security: Card Retract (opt.), Card return on power failure (opt.), and Anti-skimming
Receipt Printer Graphic Thermal Receipt Printer,E-journal
Light Device Guidance Light, Status Indicator Light, LED Electronic Screen Light (opt.), Logo Light (opt.)
Others Bar Code Reader (opt.), Fingerprint Reader (opt.), Speaker, Audio Jack
Environment Work Environment Temperature:-10~+65(+14~+149)(Indoor),-35~+75℃,(-31~+167)(Outdoor with heater)

Humidity: 20%~85%(No condensation)
Storage Environment Temperature: -20~+85(-4~+185)

Humidity: 5%~90%(No condensation)
Additional Module
SIU Control Board, Fan, Heater (opt.)

CDM-T68L Bulk Deposit Machine High Quality Financial Self-Service Terminal Bank Cash Deposit Solution 0

CDM-T68L Bulk Deposit Machine High Quality Financial Self-Service Terminal Bank Cash Deposit Solution 1

CDM-T68L Bulk Deposit Machine High Quality Financial Self-Service Terminal Bank Cash Deposit Solution 2

Company Introduction:


CDM-T68L Bulk Deposit Machine High Quality Financial Self-Service Terminal Bank Cash Deposit Solution 3


Herong Intelligent Equipment Co., Ltd. is a professional manufacturer integrating R&D, production, assembly, sales and service. Herong was established in 2016 and is located in Dongguan City, Guangdong Province, China.


We are proficient in various types of plastic molds and CNC hardware processing. We also specialize in vending machines, ATM/VTM machines, self-service kiosks, all other functional kiosks and their parts. Our factory has advanced mold and injection molding equipment, and has set up its own CNC machining center, which can perfectly undertake ATM accessories, auto accessories, household appliances, daily necessities, electronic products, medical equipment and other projects. We have professional equipment such as CNC punching machine, bending machine, laser cutting machine, spraying line, dust free workshop and all other related equipment. We can provide ODM/OEM service for customers. All the products we offer are certified by ISO9001, SGS, RoHs, CE, FCC, etc. For logistics, we can choose DHL, UPS, FedEx, sea or air, etc., it is up to our customers.


By continuously improving product quality and providing excellent service, we have maintained a good cooperative relationship with customers in more than 130 countries around the world.

Shipment:

CDM-T68L Bulk Deposit Machine High Quality Financial Self-Service Terminal Bank Cash Deposit Solution 4

RFQ:
  • Q:what’s the condition of your product?
    A:Generally we can provide 4 conditions:new original,new generic,original used and original ref.
  • Q:Is your products have a warranty?
    A:Yes.Every product has a warranty,normally it is 3 months.
  • Q:Do you have your own factory?
    A: Of course yes.We have our own factory,we can build the molds and produce parts by ourselves.
  • Q:What’s the lead time of your product?
    A:Normally it is 3-7 days after payment.The lead time is related to the quantity you ordered.
