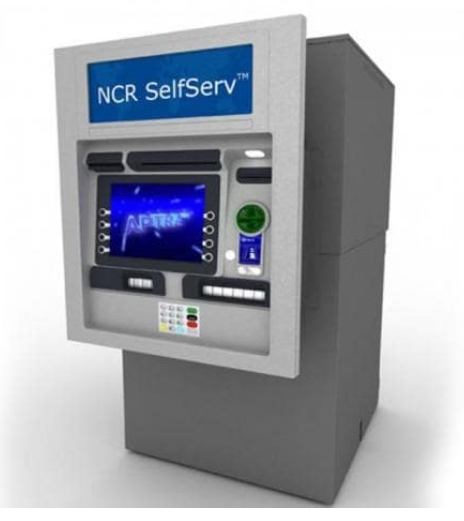

Self-Serv NCR 6634 Walk-Up Through-The-Wall Full-Function Whole ATM Machine

PRODUCT DIMENSIONS

• HEIGHT 59.0"(1,498mm)
• WIDTH 30.4"(773mm)
• DEPTH
• Standard sleeve 51.2"(1,300mm)
• Short sleeve 46.7"(1,187mm)
• WEIGHT
• CEN I safe 1.936lbs (878kg)
• CEN III/IV safe 2.284lbs (1,036kg)

• Display – 15"LCD, FDK or touchscreen, optional privacy filter, sunlight readable displays.
• Keyboard – EPP (PCI compliant), polycarbonate or stainless steel.Optional Alphanumeric keyboard.
• Card Reader – Smart Dip, IMCRW with Smart option, HiCo.
• Integrated Media Entry and Exit Indicators (MEEI)
• Audio – Optional high quality public audio and/or sound jackwith volume control.
• Advert Panel – Standard or enhanced with backlight.
• Barcode Reader – 2D Barcode supports both 1D and 2D documents 1D and 2D documents.

• S2 Media Dispense Module, 2–4 cassettes, bunch presenter
• Dual Dispense 2 x 4 (8 cassettes)
• Configurable purge bin capability with retract and single note divert
• Anti-overfill cassette

• LCD Operator Panel (rear load only)
• Front, rear and side service

• Receipt Printer – 80mm 203dpi graphics thermal printer.
• Options – retract and capture, dual roll and/or 2ST™ (two-sided thermal printing)
• Journal Printer – 80mm 203dpi graphics thermal printer (E-Journal available as default)
• Full page thermal printer with document capture and 2ST
• Passbook Printer – Page-turning passbook for horizontally stitched books

NCR Secure™is a complete portfolio of multi-layered solutions and services designed to provide protection against ATM attacks. Including a range of physical enclosures, recessed PIN Pad and Solidcore software security to protect your network

• Intelligent Cash Deposit and Recycling Options – Choice of Cash Acceptors and Recycler. Accepts and validates up to 200 new notes per transaction*
• Supports multi-currency deposit, remote download of templates
• Intelligent Check Deposit – Scalable check deposit (up to 30 checks in a single bunch)*
• Scalable deposit module – 1 slot for cash and check deposit. Can handle check and cash as a separate transaction but also mixed media (SW dependent). Up to 2,000 notes and 1,600 checks capacity*
• Envelope Depository with optional dispenser
• Coin Processing – Optional coin dispense

• Temperature:
• Standard: 50°F to 104°F (+10°C to +40°C)
• With severe environment fitted: 32°F to 104°F (0°C to +40°C)
• Humidity (interior): 20% to 80%
• Acoustics: Sound power 65db (A) idle, 68db (A) operating

• A range of Intel® Processors
• 2GB or 4GB RAM
• 500GB hard drive
• DVD-RW drive

• Windows® 7•NCR APTRA XFS
• NCR APTRA software

• Biometrics ready
• Contactless ready
• Dependent upon currency, note quality and deposit module used
